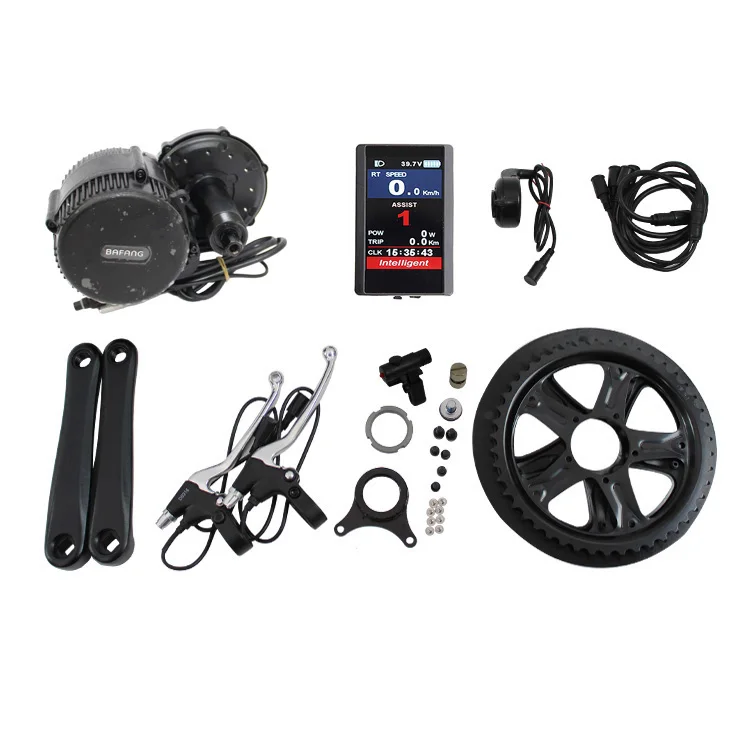

Integrated Controller. With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 500-750W, a reduction ratio of 1: 21.9 and a maximum torque of 100-120 N.m, providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes. This motor is black Leadtime: 5-7 days It will take about 5-7 days for us to build and test this new battery pack for you Products Details : Position: Mid Motor. Construction: Geared Motor. Rated Voltage (DCV): 36/48V.(36/48V) Loading of 0W (Rpm): 110/130rpm.(110/130r) Rated Power (W): 500-750W Max Torque: 100 N.m. Efficiency (%): ≥ 80%. Pedal Sensor: Speed sensor. Shaft Standard: JIS Weight (kg): 4.2 kg Speed Detection Signal (Pulses/Cycle): N/A Reduction Ratio: 1:21.9 Magnet Poles (2P): 16 Noise Grade ( dB): < 55 dB Hall Sensor: optional Connector: Waterproof. IP: IP 65 Certifications: CE/EN 14764/ROHS G.W.: 6.3kgs Volume: 0.02cbm Long: 31cm, Wide: 25cm ,High: 26cm
